Chapter 4. Software Setup in MS Windows

1. ZIO Driver Installation in XP

Step 1. Insert the ZIO Software CD-ROM into the CD drive.

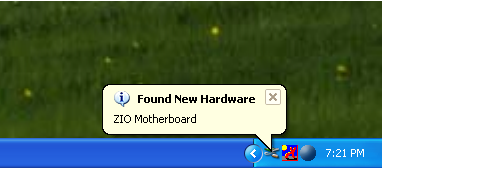

Step 2. Connect the ZIO Motherboard to the PC. Windows will detect the device.

images/zio-drv-1.png

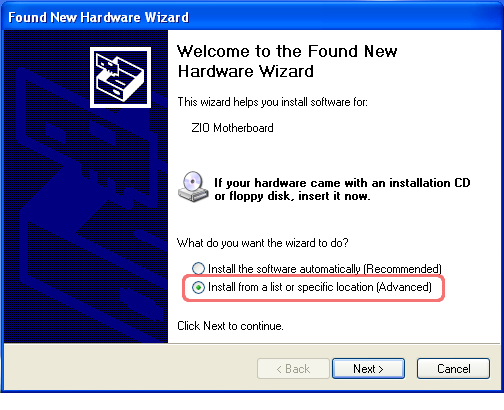

Step 3. In the "Found New Hardware Wizard", select "Install from a list of specific location", and click on "Next".

images/zio-drv-2.png

Step 4. In the next wizard page, select the "Search removable media" checkbox.

images/zio-drv-3.png

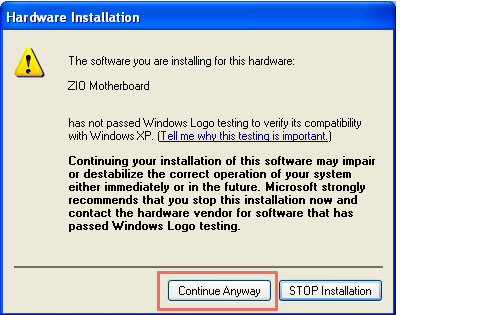

Step 5. Windows searches for the driver, and indicates that driver has not passed Windows Logo testing. Select "Continue Anyway" to install the driver.

images/zio-drv-4.png
