Step 1. Type in the following program in a text editor like notepad and save it as hello.c.

#include <board.h>
#include <lcd.h>

int main()
{
        board_init();
        lcd_init();

        lcd_puts("Hello World!\n");
        return 0;
}

Step 2. Open a DOS box, switch to the folder containing the C file and compile it using the following command.

> zcc zkit-arm-1343 hello.c

Step 3. Fix the errors, if any and check the folder for executable file with the extension bin.

Step 4. Connect the development kit to the PC using the USB cable. Press the PROG button, to switch into Programming Mode.

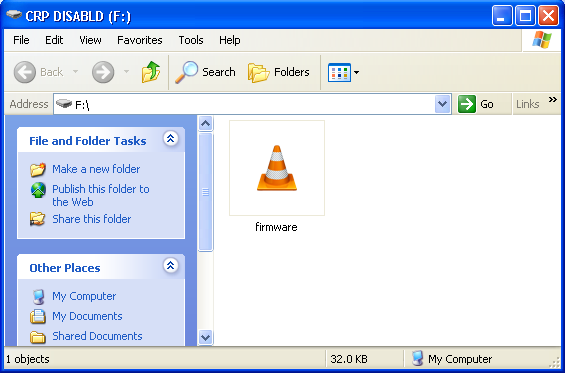

Step 5. The board will be detected as a Mass Storage Device. Just like a USB pen drive, a drive letter will be assigned.

Step 6. Delete the file firmware.bin, present in the drive. Copy the hello.bin file created in step 3, and paste it into the drive.

Step 6. Press the RESET button, to execute the downloaded program.
